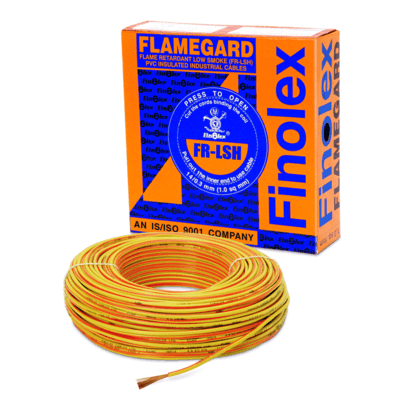

Finolex FR PVC Wire

Product Overview

Finolex PVC Insulated Industrial Cables (Unsheathed) are manufactured using 99.97% pure, bright annealed bare copper. These cables offer high insulation resistance and high current carrying capacity, ensuring absolute safety for domestic and industrial wiring.

Available in standard Flame Retardant (FR), Flame Retardant Low Smoke (FRLS), and Halogen Free Flame Retardant (HFFR) variants.

  • Voltage Grade: Up to 1100 Volts
  • Standards: Conforms to IS 694 : 2010
  • Packaging: Supplied in standard 90 Metre coils in carton boxes.

Technical Specifications (Single Core Unsheathed)

Nominal Area (Sq.mm) No. & Dia of Strands (mm) Current Capacity (Amps)* Resistance @ 20°C (Ω/km)
0.75 24 / 0.20 7 26.00
1.00 14 / 0.30 11 18.10
1.50 22 / 0.30 14 12.10
2.50 36 / 0.30 19 7.41
4.00 56 / 0.30 26 4.95
6.00 84 / 0.30 31 3.30
10.00 140 / 0.30 42 1.91

* Current rating is based on standard ambient temperature of 40°C in conduit/trunking.

Fire Safety Parameters (FRLS vs HFFR)

For installations in highly populated areas (hospitals, malls, IT parks), Finolex offers advanced PVC compounding to maximize evacuation safety.

Parameter FRLS Standard HFFR Standard
Halogen Acid Gas Emission < 20% Max < 0.5% Max (Virtually Zero)
Smoke Density Rating < 60% Max < 20% Max
Oxygen Index > 29% > 32%
